When it comes to the installation of a Rietschle vacuum pump, the foundation requirements are crucial for ensuring its proper functioning, longevity, and safety. As a Rietschle vacuum pump supplier, I have extensive experience in dealing with the installation processes and understand the significance of a well - prepared foundation. In this blog, I will delve into the various installation requirements for a Rietschle vacuum pump foundation.
1. Structural Integrity
The foundation must have sufficient structural integrity to support the weight of the Rietschle vacuum pump, along with any associated equipment such as motors, pipes, and valves. Rietschle vacuum pumps come in different sizes and capacities, and each has its own weight specifications. Before installation, it is essential to calculate the total load that the foundation will bear.
A concrete foundation is often the preferred choice due to its high strength and durability. The concrete should be of a suitable grade, typically with a compressive strength of at least 25 MPa (3625 psi). The thickness of the concrete slab depends on the size and weight of the pump. For smaller Rietschle vacuum pumps, a slab thickness of 100 - 150 mm (3.9 - 5.9 inches) may be sufficient, while larger pumps may require a slab thickness of 200 - 300 mm (7.9 - 11.8 inches).
The foundation should also be properly reinforced with steel bars to prevent cracking and ensure long - term stability. The reinforcement ratio should be determined based on the design load and the characteristics of the concrete.
2. Levelness and Alignment
One of the most critical aspects of a Rietschle vacuum pump foundation is its levelness. The pump must be installed on a perfectly level surface to ensure smooth operation and prevent excessive wear on the pump components. A deviation of more than a few millimeters in the levelness can cause misalignment of the pump shaft, which can lead to increased vibration, noise, and premature failure of the bearings and seals.
To achieve the required levelness, a spirit level or a laser level can be used during the installation process. The foundation should be checked for levelness in multiple directions, both horizontally and vertically. If necessary, shims can be used to adjust the height of the pump and ensure proper alignment.
In addition to levelness, the alignment of the pump with other connected equipment, such as motors and pipes, is also crucial. Misalignment between the pump and the motor can cause excessive stress on the coupling, leading to its failure. Proper alignment can be achieved using alignment tools, such as dial indicators or laser alignment systems.
3. Vibration Isolation
Rietschle vacuum pumps generate vibration during operation, which can be transmitted to the surrounding structure if not properly isolated. Excessive vibration can cause damage to the pump itself, as well as to other nearby equipment and the building structure. Therefore, vibration isolation is an important consideration in the foundation design.
There are several ways to isolate vibration. One common method is to use vibration isolation pads or mounts. These pads are made of materials such as rubber or neoprene, which have good damping properties. They are placed between the pump and the foundation to absorb and reduce the vibration transmitted from the pump to the foundation.
The type and size of the vibration isolation pads depend on the size and weight of the pump, as well as the frequency and amplitude of the vibration. It is important to select the appropriate pads to ensure effective vibration isolation.
Another way to reduce vibration is to design the foundation with a large mass. A heavier foundation can act as a buffer and reduce the transmission of vibration to the surrounding structure. However, this approach may not be practical in all cases, especially in situations where space is limited.
4. Environmental Considerations
The environment in which the Rietschle vacuum pump is installed also affects the foundation requirements. For example, if the pump is installed in a corrosive environment, such as a chemical plant or a coastal area, the foundation must be protected against corrosion. This can be achieved by using corrosion - resistant materials for the foundation, such as stainless steel - reinforced concrete or by applying a protective coating to the concrete surface.
In addition, the temperature and humidity of the installation environment can also impact the performance of the pump and the foundation. Extreme temperatures can cause the concrete to expand or contract, which can lead to cracking. Therefore, it is important to consider the local climate conditions and design the foundation accordingly.
5. Accessibility and Maintenance
The foundation should be designed to provide easy access to the Rietschle vacuum pump for maintenance and inspection. There should be sufficient space around the pump to allow technicians to perform routine maintenance tasks, such as checking the oil level, replacing filters, and inspecting the seals.
Access hatches or doors can be incorporated into the foundation design to provide access to the pump's internal components. In addition, the foundation should be designed in such a way that it does not interfere with the removal and installation of the pump during major overhauls.
Related Vacuum Pump Parts

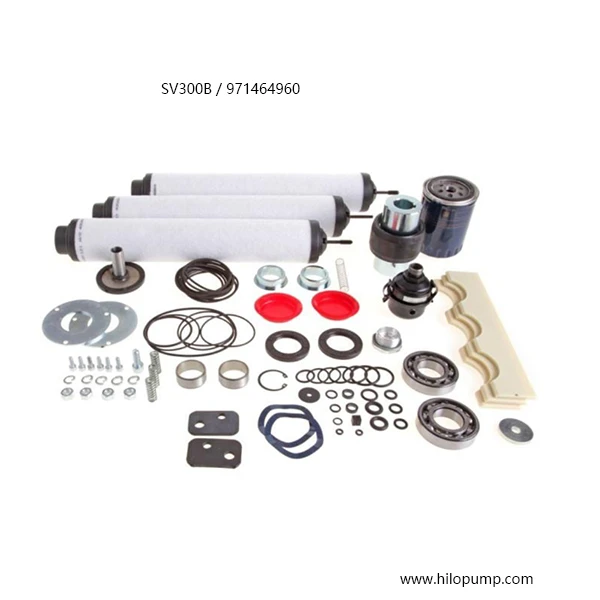

If you are also interested in vacuum pump parts, we have some great options for you. You can check out our Overhaul Repair Kits for Leybold Vacuum Pump, Sealing Kits For Leybold Pump D8C D16C D30C D40C D60C D25B D40B D65B, and Seal Kits for ULVAC Vacuum Pump. These parts are of high quality and can help you maintain your vacuum pumps in excellent condition.
Conclusion
In conclusion, the installation requirements for a Rietschle vacuum pump foundation are complex and multifaceted. A well - designed foundation is essential for the proper functioning, longevity, and safety of the pump. By considering factors such as structural integrity, levelness, alignment, vibration isolation, environmental conditions, and accessibility, you can ensure a successful installation of your Rietschle vacuum pump.
If you are in the market for a Rietschle vacuum pump or need more information about its installation and foundation requirements, please feel free to contact us for a detailed consultation. Our team of experts is ready to assist you in making the right choice for your specific needs.
